Keyframes

With keyframe animation, we basically mimic a "key press" by moving/rotating/scaling the object from one state to another (like up and down). This is the default mode for the plugin.

Using Keyframes​

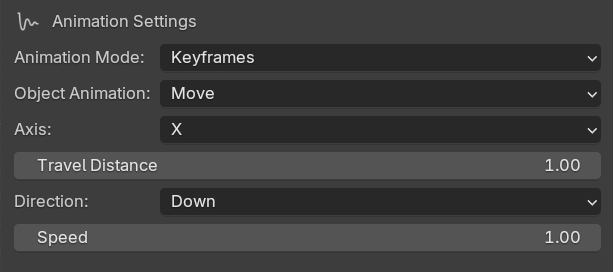

The plugin panel inside Blender

  1. Import a MIDI file and pick your track.

  2. Change the Animation Mode to Keyframes if it's not already set. You might notice the plugin UI change and swap things out.

  3. Change the Object Animation to your desired animation type - Move, Rotate, or Scale.

    • Move: This moves the object "up and down" in 3D space - based on the Axis (X, Y, Z) and Distance you pick. Z and Down are usually to go-to for a button-like press.
    • Rotate: This rotates the object in 3D space - based on the Axis (X, Y, Z) and Distance you pick. X and Up are usually to go-to for a piano-like press. Up represents a "negative" rotation, Down represents a "positive" rotation.
    • Scale: This scales the object bigger in 3D space. The "Travel Distance" represents the number your object will scale to from it's starting scale.

    I suggest moving, rotating, or scaling your object how you want it to animate. Then look at the bottom left corner of your Blender 3D viewport and it should popup with a box that tells you what Axis and "distance" you just moved the object. Then you can copy those values into the plugin.

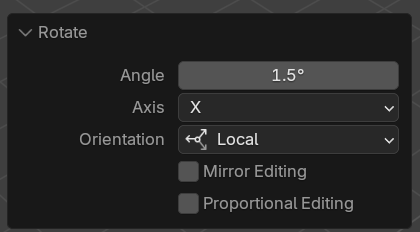

    The rotate popup inside Blender set to the X axis

  4. You can also control the speed of your animation if you want to speed or slow it down for any reason.

  5. Assign your "piano key" objects.

  6. Click "Generate Keyframes"

You should have an animation! Click play to preview it.

Or select one of your "piano key" objects that gets pressed and check the Timeline panel for keyframes. Make sure you check an object representing a note that actually gets pressed, since not all notes are pressed in every song.

info

Not happy with the animation? You can undo the keyframes (CTRL/CMD + Z). Can't undo? Try the "Delete All Keyframes" button, it will delete all keyframes on any selected note object.

warning

When generating the animation keyframes, we use the current scene's frame rate to calculate the music time. If you change your Blender scene's frame rate after generating keyframes, you should delete all keyframes, then re-generate the animation to ensure the timing is correct.
